Mirrors can be in a variety of shapes and sizes. Our catalog shows only flat round
and square mirrors. Other shapes, sizes, and surface curvatures can be made for your
special application. Contact us for your custom needs.
| Dimensions | Diameter Tolerance | Thickness Tolerance | Clear Aperture | Coating | ||
| MM | +0 / -0.20 mm | ±0.20 mm | 90% | Protected Aluminum | ||
| * All dimensions are in mm | ||||||

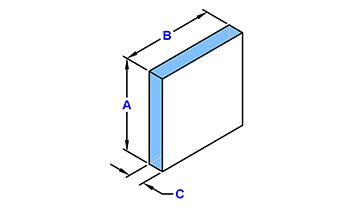

| Part Number | Material | Edge A=B | Center Thickness | Flatness | |
|---|---|---|---|---|---|
| M-PPS013 | PYREX | 50 | 10 | λ / 10 | Add to Quote |
| M-PPS010 | PYREX | 38 | 10 | λ / 10 | Add to Quote |
| M-PPS007 | PYREX | 25 | 6 | λ / 10 | Add to Quote |
| M-PPS004 | PYREX | 12.5 | 6 | λ / 10 | Add to Quote |
| M-PFS013 | PYREX | 50 | 10 | λ / 4 | Add to Quote |
| M-PFS010 | PYREX | 38 | 10 | λ / 4 | Add to Quote |
| M-PFS007 | PYREX | 25 | 6 | λ / 4 | Add to Quote |
| M-PFS004 | PYREX | 12.5 | 6 | λ / 4 | Add to Quote |
| M-CFS013 | FLOAT GLASS | 50 | 1 | 3 λ | Add to Quote |
| M-CFS010 | FLOAT GLASS | 25 | 1 | 3 λ | Add to Quote |
| M-CFS007 | FLOAT GLASS | 12.5 | 1 | 3 λ | Add to Quote |
| M-CFS004 | FLOAT GLASS | 10 | 1 | 3 λ | Add to Quote |
| M-CFS002 | FLOAT GLASS | 5 | 1 | 3 λ | Add to Quote |
