Rod lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod will be focused into a line. These components are used in a variety of laser and imaging applications.
Below are our standard rod lens specifications.
Don't see what you need? Request custom optics.

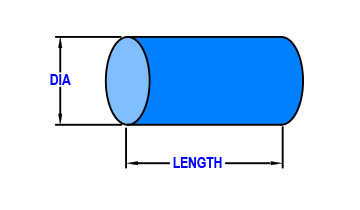

| Lens Type | Rod Lens | Length Tolerance | + 0.00 / -0.10 | |||
| Glass Type | N-BK7 | Diameter Tolerance | + 0.00 / -0.03 | |||
| Dimension Unit | mm | Surface Quality | 40-20 | |||
| Edge Bevel | None | Clear Aperture | 90% | |||
| Coating | Uncoated | |||||
| * All dimensions are in mm | ||||||
| Part Number | Diameter | Length | |
|---|---|---|---|
| L-ROD030 | 10 | 20.0000 | Add to Quote |
| L-ROD025 | 5 | 20.0000 | Add to Quote |
| L-ROD020 | 5 | 15.0000 | Add to Quote |
| L-ROD015 | 5 | 10.0000 | Add to Quote |
| L-ROD010 | 5 | 6.5000 | Add to Quote |
| L-ROD005 | 3 | 6.5000 | Add to Quote |
| L-ROD002 | 2 | 4.0000 | Add to Quote |
