Also called corner cubes, these prisms are made of solid glass that allow the entering rays to emerge parallel to itself, only in the opposite direction of propagation, regardless of the orientation of the prism. This is useful when precision alignment is difficult and a mirror would not be applicable.
| Material | Dimensions | Diameter Tolerance | Angle Tolerance | Surface Accuracy | Height Tolerance | Chamfer | Coating |
| N-BK7 | MM | +0/-0.1 mm | 3 arc Seconds | 1/10 wave | ±0.25mm | 0.2 x 45 | Uncoated (See Coating Chart for Available Options) |
| * All dimensions are in mm | |||||||

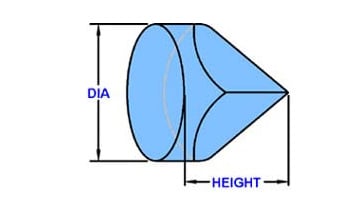

| Part Number | Diameter | Height | |
|---|---|---|---|
| P-CCP011 | 50.8 | 37.5 | Add to Quote |
| P-CCP009 | 38.1 | 28.5 | Add to Quote |
| P-CCP007 | 25.4 | 18.8 | Add to Quote |
| P-CCP005 | 15 | 11.3 | Add to Quote |
| P-CCP003 | 12.7 | 10.16 | Add to Quote |
| P-CCP001 | 7.16 | 6.1 | Add to Quote |
