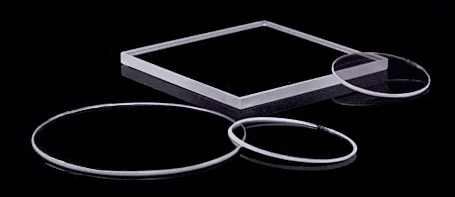

Optical windows are made of optical grade glass with plane parallel surfaces. They are used to admit light into an optical system and to protect it from dirt and moisture. Windows made of BK7 material have high transmission in the visible spectral region, do not scratch easily, do not degrade under normal operating environment and therefore do not need any special precaution or treatment. Anti-reflective coating will provide higher transmission.
Don't see what you need? Request custom optics.
| Part Number | Material | Diameter | Thickness | Flatness | |
|---|---|---|---|---|---|
| W-FSP005 | Fused Silica | 40 | 2 | λ/4 | Add to Quote |
| W-BKP007 | N-BK7 | 40 | 2 | λ/4 | Add to Quote |
| W-SIS025 | Silicon | 25.4 | 1 | 2 λ | Add to Quote |
| W-SIS020 | Silicon | 25 | 1 | 2 λ | Add to Quote |
| W-SIS010 | Silicon | 10 | 1 | 2 λ | Add to Quote |
| W-SIS005 | Silicon | 5 | 1 | 2 λ | Add to Quote |
| W-CFS025 | CaF2 | 25.4 | 1 | 2 λ | Add to Quote |
| W-CFS020 | CaF2 | 25 | 1 | 2 λ | Add to Quote |
| W-CFS010 | CaF2 | 10 | 1 | 2 λ | Add to Quote |
| W-CFS005 | CaF2 | 5 | 1 | 2 λ | Add to Quote |
| W-SAP018 | Sapphire | 25.4 | 3 | 1 λ | Add to Quote |
| W-SAP016 | Sapphire | 25 | 3 | 1 λ | Add to Quote |
| W-SAP014 | Sapphire | 20 | 2 | 1 λ | Add to Quote |
| W-SAP012 | Sapphire | 15 | 2 | 1 λ | Add to Quote |
| W-SAP010 | Sapphire | 12.7 | 2 | 1 λ | Add to Quote |
| W-SAP008 | Sapphire | 10 | 1 | 1 λ | Add to Quote |
| W-SAP006 | Sapphire | 6.35 | 1 | 1 λ | Add to Quote |
| W-SAP004 | Sapphire | 5 | 1 | 1 λ | Add to Quote |
| W-SAP002 | Sapphire | 2.5 | 1 | 1 λ | Add to Quote |
| W-FSP006 | Fused Silica | 50 | 10 | λ/10 | Add to Quote |
| W-FSP004 | Fused Silica | 25 | 6 | λ/10 | Add to Quote |
| W-FSP002 | Fused Silica | 12.5 | 6 | λ/10 | Add to Quote |
| W-BKS010 | N-BK7 | 50 | 3 | 1 λ | Add to Quote |
| W-BKS007 | N-BK7 | 25 | 3 | 1 λ | Add to Quote |
| W-BKS004 | N-BK7 | 12.5 | 3 | 1 λ | Add to Quote |
| W-BKS003 | N-BK7 | 10 | 1 | 2 λ | Add to Quote |
| W-BKP009 | N-BK7 | 50 | 10 | λ/10 | Add to Quote |
| W-BKP008 | N-BK7 | 50 | 4 | λ/4 | Add to Quote |
| W-BKP006 | N-BK7 | 25 | 6 | λ/10 | Add to Quote |
| W-BKP005 | N-BK7 | 25 | 1.5 | λ/4 | Add to Quote |
| W-BKP003 | N-BK7 | 12.5 | 6 | λ/10 | Add to Quote |
| W-BKP002 | N-BK7 | 12.5 | 1 | λ/4 | Add to Quote |
