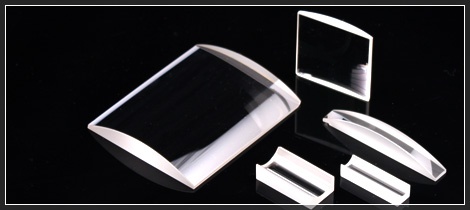

A lens having at least one surface that is a portion of a cylinder. Cylindrical lenses focus light along one axis only, thus forming a line image from a parallel incident beam. Typically used in the slit illumination of apertures, or converging the light for a line scan detector as well as stretching a point of light into a line as in a laser level.
Don't see what you need? Request custom optics.
| Part Number | X (Length) | Y (Width) | EFL | BFL | CT | ET | |
|---|---|---|---|---|---|---|---|
| L-PCN044 | 60 | 50 | -300 | -306 | 7.5 | 9.5 | Add to Quote |
| L-PCN041 | 60 | 50 | -250 | -255.4 | 7 | 9.4 | Add to Quote |
| L-PCN038 | 60 | 51 | -200 | -205 | 6.5 | 9.6 | Add to Quote |
| L-PCN035 | 60 | 51 | -150 | -154 | 5.4 | 9.5 | Add to Quote |
| L-PCN031 | 60 | 51 | -100 | -102.3 | 3 | 9.4 | Add to Quote |
| L-PCN026 | 60 | 31 | -80 | -82.3 | 3.2 | 6 | Add to Quote |
| L-PCN021 | 60 | 21 | -60 | -63.1 | 4.4 | 6.1 | Add to Quote |
| L-PCN017 | 60 | 16 | -40 | -43.1 | 4.6 | 6 | Add to Quote |
| L-PCN013 | 60 | 16 | -25.4 | -27.9 | 3.7 | 6 | Add to Quote |
| L-PCN009 | 25 | 16 | -19 | -21.4 | 3.6 | 7.1 | Add to Quote |
| L-PCN005 | 25 | 13 | -12.7 | -14.85 | 3.2 | 7.1 | Add to Quote |
| L-PCN001 | 25 | 7 | -6.35 | -8.35 | 3.1 | 5.1 | Add to Quote |
| L-PCP034 | 60 | 50 | 300 | 298.3 | 4 | 2 | Add to Quote |
| L-PCP032 | 60 | 50 | 250 | 247.9 | 4.5 | 2.1 | Add to Quote |
| L-PCP030 | 60 | 50 | 200 | 197.3 | 5 | 1.9 | Add to Quote |
| L-PCP028 | 60 | 50 | 150 | 146.5 | 6 | 1.9 | Add to Quote |
| L-PCP027 | 60 | 50 | 100 | 95 | 8 | 1.6 | Add to Quote |
| L-PCP026 | 130 | 30 | 80 | 77.63 | 4 | 1.2 | Add to Quote |
| L-PCP025 | 60 | 30 | 80 | 77.63 | 4 | 1.2 | Add to Quote |
| L-PCP024 | 130 | 20 | 60 | 58.22 | 3 | 1.3 | Add to Quote |
| L-PCP023 | 60 | 20 | 60 | 58.22 | 3 | 1.3 | Add to Quote |
| L-PCP021 | 130 | 15 | 40 | 38.35 | 2.7 | 1.3 | Add to Quote |
| L-PCP019 | 60 | 15 | 40 | 38.35 | 2.7 | 1.3 | Add to Quote |
| L-PCP015 | 60 | 22 | 25.4 | 20.87 | 7 | 1 | Add to Quote |
| L-PCP011 | 25 | 19 | 19 | 13.46 | 8.5 | 1.2 | Add to Quote |
| L-PCP007 | 25 | 12 | 12.7 | 12.7 | 5 | 1.1 | Add to Quote |
| L-PCP003 | 25 | 6 | 6.35 | 4 | 3.5 | 1.61 | Add to Quote |
