Cube Beamsplitters

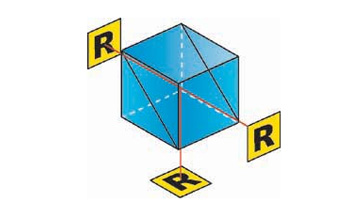

Cube beamsplitters are made by cementing two right angle prisms together on the hypotenuses. They have several advantages over plate beamsplitters; e.g., they are easier to mount and result in less ghosting.

Don't see what you need? Request custom optics.

Material Dimensions Angle Tolerance Surface Quality Surface Accuracy Bevel Coating R/T Ratio
BK7 MM ±5 arc min. 60-40 1 wave 0.3mm x 45° Outside Surfaces: 1/4 wave MgF2 Hypotenuse: Multilayer Dielectric Beamsplitter Coating 50/50 +/- 5% @ 550 nm
* All dimensions are in mm
cubed-beamsplitter
  to
Part Numbertest Edge A=B=C T/R Ratio
B-CHC017 50.8 50 / 50 Add to Quote
B-CHC015 40 50 / 50 Add to Quote
B-CHC013 30 50 / 50 Add to Quote
B-CHC011 25.4 50 / 50 Add to Quote
B-CHC009 20 50 / 50 Add to Quote
B-CHC007 12.7 50 / 50 Add to Quote
B-CHC005 10 50 / 50 Add to Quote
B-CHC003 5 50 / 50 Add to Quote
