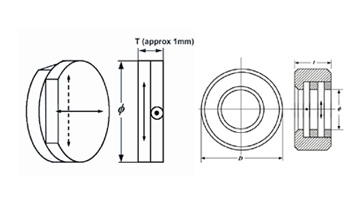

The zero order waveplate is designed to give a retardance of zero full waves, plus the desired fraction. Zero Order Waveplates show better performance than multiple order waveplates. They show a broader bandwidth and a lower sensitivity to temperature and wavelength changes and should be considered for more critical applications.
Don't see what you need? Request custom optics.
| Material | Parallelism | Dimension Unit | Diameter Tolerance | Surface Quality | Retardation Tolerance | Wavefront Distortion | Clear Aperture | AR Coated | Standard Wavelengths |
| Quartz | < 1 arc Second | MM | +0 /-0.10 | 20-10 | λ/500 | λ/8 @ 633 nm | Central 90% | < 0.2% at Wavelength | 266, 355, 532, 632.8, 780, 808, 850, 980, 1064, 1310, 1480, 1550 Other wavelengths between 200-2300 nm are available upon request |
| * All dimensions are in mm | |||||||||
| Part Number 3411016 | Diameter | Wave | Thickness | Type | |
|---|---|---|---|---|---|
| W-QPA225 | 25.4 | 1/4 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-QPA220 | 20 | 1/4 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-QPA215 | 15 | 1/4 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-QPA212 | 12.7 | 1/4 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-QPA210 | 10 | 1/4 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-HPA225 | 25.4 | 1/2 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-HPA220 | 20 | 1/2 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-HPA215 | 15 | 1/2 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-HPA212 | 12.7 | 1/2 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-HPA210 | 10 | 1/2 wave | 8.0 mm +/- 0.10 mm | Air Spaced | Add to Quote |
| W-QPO230 | 30 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPO225 | 25.4 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPO220 | 20 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPO215 | 15 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPO212 | 12.7 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPO210 | 10 | 1/4 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO230 | 30 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO225 | 25.4 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO220 | 20 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO215 | 15 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO212 | 12.7 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-HPO210 | 10 | 1/2 wave | approx 1.0mm | Optically Contacted | Add to Quote |
| W-QPC230 | 30 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-QPC225 | 25.4 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-QPC220 | 20 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-QPC215 | 15 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-QPC212 | 12.7 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-QPC210 | 10 | 1/4 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC230 | 30 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC225 | 25.4 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC220 | 20 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC215 | 15 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC212 | 12.7 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
| W-HPC210 | 10 | 1/2 wave | approx 1.0mm | Epoxy Cemented | Add to Quote |
