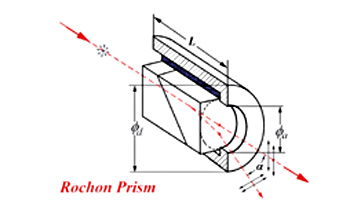

A Rochon polarizer separates incident beams into ordinary and extraordinary like some other polarizers; however the p-polarization is transmitted straight through while the s-polarization is transmitted with a deviation angle.
Don't see what you need? Request custom optics.
| Part Number | Extinction Ratio | Separation Angle | Clear Aperturer | Outer Dia | Length | |
|---|---|---|---|---|---|---|
| Z-RHP080 | <4x10-6 | 1.0-1.5° 1°@980nm | 15 | 30 | 38 | Add to Quote |
| Z-RHP075 | <4x10-6 | 1.0-1.5° 1°@980nm | 10 | 25.4 | 28 | Add to Quote |
| Z-RHP070 | <4x10-6 | 1.0-1.5° 1°@980nm | 8 | 25.4 | 46 | Add to Quote |
| Z-RHP065 | <4x10-6 | 1.0-1.5° 1°@980nm | 6 | 15 | 36 | Add to Quote |
| Z-RHP020 | <5x10-6 | 8.0-14° 8°@800nm | 15 | 30 | 23 | Add to Quote |
| Z-RHP015 | <5x10-6 | 8.0-14° 8°@800nm | 10 | 25.4 | 18 | Add to Quote |
| Z-RHP010 | <5x10-6 | 8.0-14° 8°@800nm | 8 | 25.4 | 16 | Add to Quote |
| Z-RHP005 | <5x10-6 | 8.0-14° 8°@800nm | 6 | 15 | 15 | Add to Quote |
