These are lenses with one flat surface and one convex surface. They have a positive focal length and are used to converge or focus incoming light. They are best for infinite conjugate systems. They can be used in many different optical systems such as magnifiers, telescopes, collimators, condensers and imaging instruments. For best optical performance, the convex side should always face the incident light.
Below are our standard specifications.
Don't see what you need? Request custom optics.

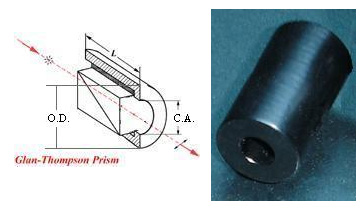

This type of polarizer is made of two cemented right angle prisms. The s-polarized extraordinary beam is transmitted while the ordinary beam is reflected. The prisms provide larger field of view than the Glan-Taylor type.
|Part Number||Extinction Ratio||Angular Field||Clear Aperturer||Outer Dia||Length|
|Z-GMP100||<5x10-6||25-28||15||30||53||Add to Quote|
|Z-GMP095||<5x10-6||25-28||10||25.4||38||Add to Quote|
|Z-GMP090||<5x10-6||25-28||8||25.4||32||Add to Quote|
|Z-GMP085||<5x10-6||25-28||6||15||26||Add to Quote|
|Z-GMP080||<5x10-6||14-16||15||30||45.5||Add to Quote|
|Z-GMP075||<5x10-6||14-16||10||25.4||33||Add to Quote|
|Z-GMP070||<5x10-6||14-16||8||25.4||28||Add to Quote|
|Z-GMP065||<5x10-6||14-16||6||15||23||Add to Quote|
|Z-GMP020||<5x10-6||>15||15||30||32.5||Add to Quote|
|Z-GMP015||<5x10-6||>15||10||25.4||24.5||Add to Quote|
|Z-GMP010||<5x10-6||>15||8||25.4||21||Add to Quote|
|Z-GMP005||<5x10-6||>15||6||15||18||Add to Quote|
