Amici Prisms

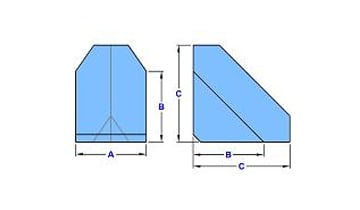

Also called a roof prism, the Amici prism is a right angle prism that's hypotenuse has been replaced by a 90-degree roof. The corners that do not affect the clear aperture have been cut away to reduce weight and size. They are used to both erect and make a 90-degree deflection of the incoming object. They are ideal to turn an inverted image right side up.

Don't see what you need? Request custom optics.





Material Dimensions Diameter Tolerance Surface Accuracy Angle Tolerance Resolution Bevel
BK7 MM +0/-0.1 mm 1/2 wave ±3 arc minutes 5 arc sec 0.2mm x 45°
* All dimensions are in mm
amici-prisms
  to
  to
Part Number Side A Side B Side C
P-ARP011 50.8 50.8 69.5 Add to Quote
P-ARP009 38.1 38.1 52 Add to Quote
P-ARP007 25.4 25.4 35 Add to Quote
P-ARP005 19 19 26 Add to Quote
P-ARP003 12.7 12.7 17.25 Add to Quote
