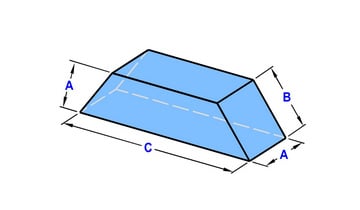

Dove prism is a truncated version of right angle prism. A beam entering parallel to the hypotenuse face is reflected internally and emerges parallel to its incident direction. Dove prisms are used as image rotators. As the prism is rotated, the image passing through will rotate at an angle twice that of the prism.
Don't see what you need? Request custom optics.
| Material | Dimensions | Tolerance | Surface Quality | Surface Accuracy | Bevel | Angle | AR Coating |
| BK7 | MM | ±0.1 mm (A/C), ±0.38 (B) | 60-40 | 1/2 wave | 0.3mm x 45° | ±3 arc min | Uncoated |
| * All dimensions are in mm | |||||||
| Part Number | Side A | Side B | Side C | |
|---|---|---|---|---|
| P-DOV017 | 6 | 8.5 | 25.37 | Add to Quote |
| P-DOV015 | 3.6 | 5.1 | 15.22 | Add to Quote |
| P-DOV013 | 2.5 | 3.5 | 10.56 | Add to Quote |
| P-DOV011 | 2 | 2.8 | 8 | Add to Quote |
| P-DOV009 | 1.2 | 1.7 | 5.07 | Add to Quote |
| P-DOV007 | 20 | 28.3 | 84.55 | Add to Quote |
| P-DOV005 | 15 | 21.2 | 63.41 | Add to Quote |
| P-DOV003 | 10 | 14.1 | 42.28 | Add to Quote |
