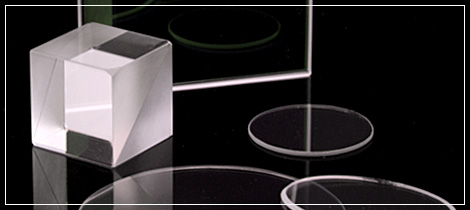

Plate beamsplitters consist of a thin window with a beam splitter coating deposited on one side. They are used at a 45-degree incident angle. The beam is partially reflected at a 90-degree angle and partially transmitted through the glass.
Don't see what you need? Request custom optics.
| Material | Thickness | Dimensions | Diameter Tolerance | Surface Quality | Surface Accuracy | Parallelism | Edges | Coating | Front | Back |
| Float Glass | 1.0 ± 0.2 mm | MM | ± 0.2 mm | 80-50 | 4 Waves / 25 mm | ± 5 Arc Minutes | Cut | All Dielectric ±5% R/T at 550nm | BBAR 450-650 nm | |
| * All dimensions are in mm | ||||||||||
| Part Number | Diameter | T/R Ratio | Type | |
|---|---|---|---|---|
| B-GCP006 | 50 | 30/70 | Round Plate Beamsplitters | Add to Quote |
| B-GCP005 | 25 | 30/70 | Round Plate Beamsplitters | Add to Quote |
| B-GCP004 | 50 | 50/50 | Round Plate Beamsplitters | Add to Quote |
| B-GCP003 | 25 | 50/50 | Round Plate Beamsplitters | Add to Quote |
| B-GCP002 | 50 | 70/30 | Round Plate Beamsplitters | Add to Quote |
| B-GCP001 | 25 | 70/30 | Round Plate Beamsplitters | Add to Quote |
| Part Number | Side | T/R Ratio | Type | |
|---|---|---|---|---|
| B-GCP011 | 25 | 70/30 | Square Plate Beamsplitters | Add to Quote |
| B-GCP012 | 50 | 70/30 | Square Plate Beamsplitters | Add to Quote |
| B-GCP013 | 25 | 50/50 | Square Plate Beamsplitters | Add to Quote |
| B-GCP014 | 50 | 50/50 | Square Plate Beamsplitters | Add to Quote |
| B-GCP015 | 25 | 30/70 | Square Plate Beamsplitters | Add to Quote |
| B-GCP016 | 50 | 30/70 | Square Plate Beamsplitters | Add to Quote |
