Equilateral Prisms

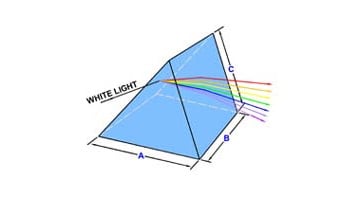

These prisms have three equal 60° angles and are used as dispersing prisms.

Don't see what you need? Request custom optics.





Dimensions Diameter Tolerance Surface Quality Surface Accuracy Angle Tolerance Bevel AR Coating
MM ±0.1 mm 60-40 1 wave ±3 arc min 0.3mm x 45° Uncoated
* All dimensions are in mm
equilateral-prisms
  to
Part Number Edge A=B=C Material
P-EDF013 60 Flint Glass F2 Add to Quote
P-EDF011 50 Flint Glass F2 Add to Quote
P-EDF009 45 Flint Glass F2 Add to Quote
P-EDF007 40 Flint Glass F2 Add to Quote
P-EDF005 30 Flint Glass F2 Add to Quote
P-EDF003 25 Flint Glass F2 Add to Quote
P-EDC012 60 Crown Glass BK7 Add to Quote
P-EDC010 50 Crown Glass BK7 Add to Quote
P-EDC008 45 Crown Glass BK7 Add to Quote
P-EDC006 40 Crown Glass BK7 Add to Quote
P-EDC004 30 Crown Glass BK7 Add to Quote
P-EDC002 25 Crown Glass BK7 Add to Quote
