Right Angle Prisms

Right angle prisms are optical elements having at least three polished faces inclined relative to each other at 45-90-45 degrees. They can be used as total internal reflectors, hypotenuse face reflectors, retroreflectors and 90 degrees beam benders.

Don't see what you need? Request custom optics.





Material Dimensions Diameter Tolerance Surface Quality Surface Accuracy Angle Tolerance Bevel AR Coating Hypotenuse
BK7 MM ±0.1 mm 60-40 0.5 wave ±3 arc min 0.3mm x 45° Entrance and exit surfaces - 1/4 wave MgF2 @ 550nm Protected Aluminum
* All dimensions are in mm
right-angle-prisms
  to

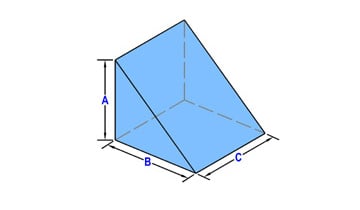

Part Number Edge A=B=C Material
P-URA016 50.8 Un-aluminized Add to Quote
P-URA014 38.1 Un-aluminized Add to Quote
P-URA013 25.4 Un-aluminized Add to Quote
P-URA010 20 Un-aluminized Add to Quote
P-URA007 12.7 Un-aluminized Add to Quote
P-URA004 10 Un-aluminized Add to Quote
P-URA003 6.4 Un-aluminized Add to Quote
P-URA002 3 Un-aluminized Add to Quote
P-URA001 1.3 Un-aluminized Add to Quote
P-ARA016 50.8 Aluminized Add to Quote
P-ARA014 38.1 Aluminized Add to Quote
P-ARA013 25.4 Aluminized Add to Quote
P-ARA010 20 Aluminized Add to Quote
P-ARA007 12.7 Aluminized Add to Quote
P-ARA004 10 Aluminized Add to Quote
P-ARA003 6.4 Aluminized Add to Quote
P-ARA002 3 Aluminized Add to Quote
P-ARA001 1.3 Aluminized Add to Quote
