Fused Silica Lenses

Fused Silica material has advantages over regular optical glasses. It is often used in deep UV or NIR systems due to its high transmission in those spectral regions. Due to the material’s inherently hard SiO2 amorphous structure and its exceptional chemical homogeneity, it displays high laser damage threshold and endures high operating temperatures. These lenses are often used in laser and imaging systems.

Diameter Dia. Tolerance CT Tolerance Centering Irregularity Surface Quality Bevel
7.50-25.00 +0.00 / -0.10 ±0.2 < 3 minutes 0.5 Waves 40-20 0.25 x 45°
25.01 - 50.00 +0.00 / -0.10 ±0.2 < 3 minutes 0.5 Waves 60-40 0.50 x 45°
Dimensions MM
Clear Aperture CA >= 90% of Diameter
Coating Uncoated, Specify your coating (See Coating Chart for Available Options)
Design Wavelength 587.6nm
Focal Length Tolerance ±2%
Edge Thickness Reference
* All dimensions are in mm
plano-convext-model
  to
  to

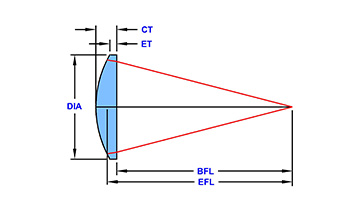

Part Number Diameter Effective Focal Length Back Focal Length Center Thickness Edge Thickness
L-QPX030 50 75 65.8 13.8 3.1 Add to Quote
L-QPX029 25.4 50.8 44.4 9.2 5.4 Add to Quote
L-QPX028 25.4 38.1 30.7 10.8 5.3 Add to Quote
L-QPX027 25 250 249 2.7 2 Add to Quote
L-QPX024 25 200 198.7 2.9 2 Add to Quote
L-QPX021 25 150 148.4 3.1 2 Add to Quote
L-QPX018 25 100 97.8 3.7 2 Add to Quote
L-QPX015 25 75 72.2 4.4 2.1 Add to Quote
L-QPX012 25 50 46.3 5.7 2 Add to Quote
L-QPX009 15 25 21.8 4.8 2 Add to Quote
L-QPX003 7.5 15 12.9 3.1 2 Add to Quote
