These lenses have one flat surface and one concave surface. They have a negative focal length and are used to diverge incoming light, or to increase focal length in an existing optical system. They can be used in beam expanders and projection systems.
| Diameter | Dia. Tolerance | CT Tolerance | Centering | Irregularity | Surface Quality | Bevel |
| 5.00-25.00 | +0.00 / -0.10 | ±0.1 | < 3 minutes | 0.5 Waves | 40-20 | 0.25 x 45° |
| 25.01 - 50.00 | +0.00 / -0.10 | ±0.1 | < 3 minutes | 0.5 Waves | 60-40 | 0.50 x 45° |
| 50.01-100.00 | +0.00 / -0.10 | ±0.1 | < 3 minutes | 0.5 Waves | 60-40 | 0.50 x 45° |

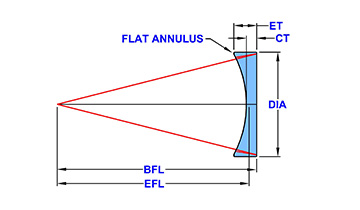

| Dimensions | MM | |||||
| Clear Aperture | CA >= 90% of Diameter | |||||
| Flat Annulus | Dia > 50 mm - Flat = 0.25 +0/-0.20 Dia > 50 mm - Flat = 0.50 +0/-0.40 |
|||||
| Coating | Uncoated, Specify your coating (See Coating Chart for Available Options) | |||||
| Design Wavelength | 587.6nm | |||||
| Focal Length Tolerance | ±2% | |||||
| Edge Thickness | Reference | |||||
| * All dimensions are in mm | ||||||
| Part Number | Diameter | EFL | BFL | CT | ET | |
|---|---|---|---|---|---|---|
| L-PCC140 | 6 | -6 | -6.84 | 1.5 | 1.9 | Add to Quote |
| L-PCC135 | 6 | -11 | -11.6 | 1 | 2 | Add to Quote |
| L-PCC130 | 13 | -1500 | -1501.85 | 2.5 | 2.5 | Add to Quote |
| L-PCC123 | 12.5 | -150 | -151.49 | 1.5 | 1.8 | Add to Quote |
| L-PCC119 | 19.05 | -75 | -77.25 | 3 | 4.2 | Add to Quote |
| L-PCC118 | 76.2 | -500 | -502.03 | 2.5 | 5.3 | Add to Quote |
| L-PCC114 | 50 | -500 | -503.32 | 2.5 | 3.7 | Add to Quote |
| L-PCC113 | 50 | -400 | -402.98 | 2.5 | 4 | Add to Quote |
| L-PCC112 | 50 | -300 | -302.65 | 2.5 | 4.5 | Add to Quote |
| L-PCC111 | 50 | -250 | -252.48 | 2.5 | 4.9 | Add to Quote |
| L-PCC110 | 50 | -200 | -202.06 | 2 | 5.1 | Add to Quote |
| L-PCC109 | 50 | -150 | -152.54 | 3 | 7.1 | Add to Quote |
| L-PCC108 | 50 | -125 | -127.44 | 3 | 8 | Add to Quote |
| L-PCC107 | 95 | -600 | -604.21 | 3 | 6.7 | Add to Quote |
| L-PCC106 | 50 | -100 | -101.69 | 2 | 8.4 | Add to Quote |
| L-PCC105 | 50 | -75 | -76.9 | 2.5 | 11.6 | Add to Quote |
| L-PCC104 | 47 | -50 | -51.5 | 2 | 17 | Add to Quote |
| L-PCC103 | 42 | -100 | -101.69 | 2 | 6.4 | Add to Quote |
| L-PCC102 | 40 | -203.2 | -204.5 | 2 | 3.9 | Add to Quote |
| L-PCC101 | 40 | -200 | -202.06 | 2 | 4 | Add to Quote |
| L-PCC100 | 40 | -150 | -151.88 | 2 | 4.6 | Add to Quote |
| L-PCC099 | 40 | -101.6 | -102.31 | 1.1 | 5 | Add to Quote |
| L-PCC098 | 40 | -90 | -91.96 | 3 | 7.5 | Add to Quote |
| L-PCC097 | 40 | -76.2 | -77.57 | 2.1 | 7.5 | Add to Quote |
| L-PCC096 | 40 | -63.5 | -65.06 | 2 | 8.8 | Add to Quote |
| L-PCC095 | 40 | -50 | -51.5 | 2 | 11.4 | Add to Quote |
| L-PCC094 | 50.8 | -500 | -502.03 | 2.5 | 3.8 | Add to Quote |
| L-PCC091 | 50 | -1000 | -1004.98 | 2.5 | 3.1 | Add to Quote |
| L-PCC090 | 38.1 | -200 | -202.06 | 2.5 | 4.3 | Add to Quote |
| L-PCC089 | 50 | -750 | -754.15 | 2.5 | 3.3 | Add to Quote |
| L-PCC088 | 38.1 | -150 | -152.06 | 2.5 | 4.9 | Add to Quote |
| L-PCC087 | 50 | -600 | -603.55 | 2 | 3 | Add to Quote |
| L-PCC086 | 38.1 | -100 | -101.65 | 2.5 | 6.1 | Add to Quote |
| L-PCC084 | 38.1 | -75 | -76.65 | 2.5 | 7.5 | Add to Quote |
| L-PCC083 | 38.1 | -50 | -51.65 | 2.5 | 10.9 | Add to Quote |
| L-PCC082 | 38 | -750 | -753.82 | 2 | 2.5 | Add to Quote |
| L-PCC081 | 38 | -500 | -502.99 | 2 | 2.7 | Add to Quote |
| L-PCC080 | 38 | -250 | -252.15 | 2 | 3.4 | Add to Quote |
| L-PCC079 | 38 | -200 | -201.99 | 2 | 3.8 | Add to Quote |
| L-PCC078 | 38 | -150 | -151.82 | 2 | 4.4 | Add to Quote |
| L-PCC077 | 38 | -125 | -126.74 | 2 | 4.9 | Add to Quote |
| L-PCC076 | 38 | -100 | -101.65 | 2 | 5.6 | Add to Quote |
| L-PCC075 | 38 | -75 | -76.57 | 2 | 7 | Add to Quote |
| L-PCC074 | 38 | -50 | -51.49 | 2 | 10.3 | Add to Quote |
| L-PCC073 | 30 | -200 | -202.06 | 2 | 3.1 | Add to Quote |
| L-PCC072 | 30 | -150 | -151.88 | 2 | 3.5 | Add to Quote |
| L-PCC071 | 30 | -125 | -126.78 | 2 | 3.8 | Add to Quote |
| L-PCC070 | 30 | -100 | -101.69 | 2 | 4.2 | Add to Quote |
| L-PCC069 | 30 | -76.2 | -77.7 | 2.3 | 5.2 | Add to Quote |
| L-PCC068 | 30 | -50 | -51.5 | 2 | 6.8 | Add to Quote |
| L-PCC067 | 25.4 | -200 | -202.06 | 2.5 | 3.3 | Add to Quote |
| L-PCC066 | 25.4 | -150 | -152.06 | 2.5 | 3.5 | Add to Quote |
| L-PCC065 | 25.4 | -75 | -76.65 | 2.5 | 4.6 | Add to Quote |
| L-PCC064 | 25.4 | -66 | -67.18 | 1.8 | 4.2 | Add to Quote |
| L-PCC063 | 25.4 | -38.1 | -39.56 | 2 | 6.6 | Add to Quote |
| L-PCC062 | 12.5 | -250 | -251.82 | 1.5 | 1.7 | Add to Quote |
| L-PCC061 | 25 | -500 | -502.66 | 1.5 | 1.8 | Add to Quote |
| L-PCC060 | 25 | -400 | -402.32 | 1.5 | 1.9 | Add to Quote |
| L-PCC059 | 25 | -300 | -301.99 | 1.5 | 2 | Add to Quote |
| L-PCC058 | 25 | -250 | -251.82 | 1.5 | 2.1 | Add to Quote |
| L-PCC057 | 25 | -200 | -201.66 | 1.5 | 2.3 | Add to Quote |
| L-PCC056 | 25 | -150 | -151.49 | 1.5 | 2.5 | Add to Quote |
| L-PCC055 | 25 | -125 | -126.41 | 1.5 | 2.7 | Add to Quote |
| L-PCC054 | 25 | -100 | -101.32 | 1.5 | 3 | Add to Quote |
| L-PCC053 | 12.7 | -25 | -26.65 | 2.5 | 4.2 | Add to Quote |
| L-PCC052 | 25 | -75 | -76.24 | 1.5 | 3.6 | Add to Quote |
| L-PCC051 | 25 | -60 | -61.19 | 1.5 | 4.1 | Add to Quote |
| L-PCC050 | 25 | -50 | -51.16 | 1.5 | 4.7 | Add to Quote |
| L-PCC048 | 25 | -40 | -41.12 | 1.5 | 5.7 | Add to Quote |
| L-PCC047 | 25 | -30 | -31.09 | 1.5 | 7.8 | Add to Quote |
| L-PCC046 | 25 | -25.4 | -26.19 | 1.2 | 10 | Add to Quote |
| L-PCC045 | 22.4 | -150 | -151.88 | 2 | 2.8 | Add to Quote |
| L-PCC044 | 22.4 | -50 | -51.5 | 2 | 4.5 | Add to Quote |
| L-PCC043 | 22 | -85 | -86.63 | 2 | 3.4 | Add to Quote |
| L-PCC042 | 20 | -50 | -51.5 | 2 | 4 | Add to Quote |
| L-PCC041 | 18 | -350 | -352.16 | 1.5 | 1.7 | Add to Quote |
| L-PCC040 | 18 | -250 | -251.82 | 1.5 | 1.8 | Add to Quote |
| L-PCC039 | 18 | -200 | -201.66 | 1.5 | 1.9 | Add to Quote |
| L-PCC038 | 18 | -150 | -151.49 | 1.5 | 2 | Add to Quote |
| L-PCC037 | 18 | -125 | -126.41 | 1.5 | 2.1 | Add to Quote |
| L-PCC036 | 18 | -100 | -101.32 | 1.5 | 2.3 | Add to Quote |
| L-PCC035 | 18 | -75 | -76.24 | 1.5 | 2.6 | Add to Quote |
| L-PCC034 | 18 | -50 | -51.16 | 1.5 | 3.1 | Add to Quote |
| L-PCC033 | 18 | -35 | -36.11 | 1.5 | 3.9 | Add to Quote |
| L-PCC032 | 18 | -29 | -30.43 | 2 | 5 | Add to Quote |
| L-PCC031 | 50 | -152.4 | -152.9 | 1.4 | 5.4 | Add to Quote |
| L-PCC030 | 18 | -25 | -26.07 | 1.5 | 5.1 | Add to Quote |
| L-PCC029 | 38.1 | -250 | -251.65 | 2.5 | 3.9 | Add to Quote |
| L-PCC028 | 12.7 | -100 | -101.65 | 2.5 | 2.9 | Add to Quote |
| L-PCC027 | 12.7 | -75 | -76.65 | 2.5 | 3 | Add to Quote |
| L-PCC026 | 12.7 | -50 | -51.65 | 2.5 | 3.3 | Add to Quote |
| L-PCC025 | 25.4 | -25 | -26.65 | 2.5 | 13.1 | Add to Quote |
| L-PCC024 | 12.5 | -200 | -201.66 | 1.5 | 1.7 | Add to Quote |
| L-PCC023 | 12.5 | -125 | -126.41 | 1.5 | 1.8 | Add to Quote |
| L-PCC022 | 12.5 | -100 | -101.32 | 1.5 | 1.9 | Add to Quote |
| L-PCC021 | 12.5 | -75 | -76.24 | 1.5 | 2 | Add to Quote |
| L-PCC020 | 12.5 | -60 | -61.19 | 1.5 | 2.1 | Add to Quote |
| L-PCC019 | 25.4 | -50 | -51.65 | 2.5 | 5.8 | Add to Quote |
| L-PCC018 | 12.5 | -40 | -41.12 | 1.5 | 2.5 | Add to Quote |
| L-PCC017 | 12.5 | -35 | -36.11 | 1.5 | 2.6 | Add to Quote |
| L-PCC016 | 25.4 | -100 | -101.65 | 2.5 | 4.1 | Add to Quote |
| L-PCC015 | 12.5 | -30 | -31.09 | 1.5 | 2.8 | Add to Quote |
| L-PCC013 | 25 | -25 | -26.4 | 2 | 11.5 | Add to Quote |
| L-PCC012 | 12.5 | -25 | -26.07 | 1.5 | 3.1 | Add to Quote |
| L-PCC011 | 12.5 | -20 | -21.06 | 1.5 | 3.6 | Add to Quote |
| L-PCC010 | 22.4 | -100 | -101.69 | 2 | 3.2 | Add to Quote |
| L-PCC009 | 12.5 | -15 | -16.04 | 1.5 | 4.7 | Add to Quote |
| L-PCC008 | 8 | -29 | -30.4 | 1.6 | 2.1 | Add to Quote |
| L-PCC007 | 21 | -40 | -41.47 | 2 | 4.9 | Add to Quote |
| L-PCC006 | 5 | -10 | -11.36 | 2 | 2.6 | Add to Quote |
| L-PCC005 | 6.35 | -25 | -26.65 | 2.5 | 2.9 | Add to Quote |
| L-PCC004 | 20 | -30 | -31.43 | 2 | 5.6 | Add to Quote |
| L-PCC003 | 8 | -15 | -16.37 | 2 | 3.1 | Add to Quote |
| L-PCC002 | 12.5 | -50 | -51.16 | 1.5 | 2.3 | Add to Quote |
| L-PCC001 | 10 | -20 | -21.39 | 2 | 3.3 | Add to Quote |
| L-PCC000 | 6.35 | -12.5 | -14.15 | 2.5 | 3.3 | Add to Quote |
