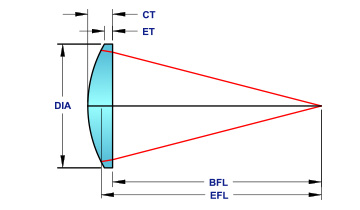

plano-convext-model

Micro Plano Convex

These are lenses with one flat surface and one convex surface. They have a positive focal length and are used to converge or focus incoming light. They are best for infinite conjugate systems. They can be used in many different optical systems such as magnifiers, telescopes, collimators, condensers and imaging instruments. For best optical performance, the convex side should always face the incident light.

Below are our standard specifications.
Don't see what you need? Request custom optics.

Diameter Dia. Tolerance CT Tolerance Centering Irregularity Surface Quality Bevel
2.50-6.00 +0.00 / -0.10 ±0.1 < 3 minutes 0.5 Waves 40-20 0.25 x 45°
6.00-25.00 +0.00 / -0.10 ±0.1 < 3 minutes 0.5 Waves 40-20 0.25 x 45°
25.01 - 50.00 +0.00 / -0.10 ±0.1 < 3 minutes 0.5 Waves 60-40 0.50 x 45°
50.01-100.00 +0.00 / -0.10 ±0.1 < 3 minutes 0.5 Waves 60-40 0.50 x 45°
100.01-150.00 +0.05 / -0.10 ±0.2 3 - 5 arc min. 1Waves 80-50 1.00 x 45°
>150.00 +/- 0.25 ±0.25 5-10 arc min. 2 Waves 120-100 2.00 x 45°
Dimensions MM
Clear Aperture CA >= 90% of Diameter
Coating Uncoated, Specify your coating (See Coating Chart for Available Options)
Design Wavelength 587.6nm
Focal Length Tolerance ±2%
Edge Thickness Reference
* All dimensions are in mm
plano-convext-model
  to
  to
Part Number Diameter Effective Focal Length Back Focal Length Center Thickness Edge Thickness
L-PCX845 50.8 62.9 52.87 15.22 3 Add to Quote
L-PCX843 25.4 250 247.61 3.62 3 Add to Quote
L-PCX826 12.7 250 247.96 3.1 2.9 Add to Quote
L-PCX743 25.4 175 172.11 3.89 3 Add to Quote
L-PCX645 47.5 160 156.58 6 2.5 Add to Quote
L-PCX643 25.4 125 122.19 4.26 3 Add to Quote
L-PCX626 12.7 150 147.74 3.2 2.9 Add to Quote
L-PCX545 40 90 86.05 6.5 2 Add to Quote
L-PCX544 30 38.1 32.44 8.8 1.9 Add to Quote
L-PCX541 25.4 50.8 47.56 5.2 1.9 Add to Quote
L-PCX539 25 60 56.91 4.7 2.1 Add to Quote
L-PCX537 20 42 39.37 4.2 1.8 Add to Quote
L-PCX526 12.7 75.6 73.29 3.5 3 Add to Quote
L-PCX520 15 60 57.94 3.1 2.2 Add to Quote
L-PCX515 15 45 43.04 3.1 1.9 Add to Quote
L-PCX510 8 15.5 14.16 2 0.9 Add to Quote
L-PCX505 6.6 40 38.95 1.8 1.5 Add to Quote
L-PCX439 25 135 133.46 3.1 2 Add to Quote
L-PCX426 12.7 50.2 47.7 3.78 3 Add to Quote
L-PCX413 50.8 127 122.2 8 2.9 Add to Quote
L-PCX412 180 280 257.01 35 4.1 Add to Quote
L-PCX411 25.4 62.9 59.23 5.58 3 Add to Quote
L-PCX410 130 200 183.21 26.6 3.7 Add to Quote
L-PCX409 25.4 38 34.18 5.6 0.9 Add to Quote
L-PCX408 25 500 500.3 2.3 2 Add to Quote
L-PCX407 25 400 399.87 2.4 2 Add to Quote
L-PCX406 25 250 249.45 2.1 1.5 Add to Quote
L-PCX405 25 150 148.85 2.5 1.5 Add to Quote
L-PCX404 25 140 132.95 3.1 2 Add to Quote
L-PCX403 15.5 120 118.87 1.6 -61.1 Add to Quote
L-PCX402 150 250 231.59 28 4.4 Add to Quote
L-PCX401 25 125 123.64 2.7 1.5 Add to Quote
L-PCX400 25 105 103.1 3.4 2 Add to Quote
L-PCX399 25 100 98.36 3 1.5 Add to Quote
L-PCX398 25 76.2 73.24 4.1 2.1 Add to Quote
L-PCX397 25 63.5 60.33 4.5 2 Add to Quote
L-PCX395 12.5 125 124.23 1.8 1.5 Add to Quote
L-PCX394 200 300 277.25 40 4 Add to Quote
L-PCX392 25 700 701.16 2.2 2 Add to Quote
L-PCX391 101.6 254 245.64 14.1 3.9 Add to Quote
L-PCX390 101.6 250 241.05 12.3 1.9 Add to Quote
L-PCX389 101.6 150 135.79 20.8 1.8 Add to Quote
L-PCX388 100 1000 998.46 7.4 5 Add to Quote
L-PCX387 100 750 747.1 8.2 5 Add to Quote
L-PCX386 100 500 495.14 9.9 5 Add to Quote
L-PCX385 100 350 343.19 12.1 5.1 Add to Quote
L-PCX384 100 250 240.95 15 5 Add to Quote
L-PCX383 100 200 188.8 18 5.2 Add to Quote
L-PCX382 100 180 168.56 17.4 3 Add to Quote
L-PCX381 100 150 135.2 23.2 5 Add to Quote
L-PCX380 100 125 106.43 28.8 5.2 Add to Quote
L-PCX379 100 120.8 101.46 28.8 3.6 Add to Quote
L-PCX378 250 450 423.08 40.9 5 Add to Quote
L-PCX377 95 600 597.89 6.6 3 Add to Quote
L-PCX376 95 300 294.26 10.4 3 Add to Quote
L-PCX375 95 130 115.79 22.3 2.7 Add to Quote
L-PCX374 90 500 495.87 6.2 2.3 Add to Quote
L-PCX373 90 400 395.09 7.4 2.5 Add to Quote
L-PCX372 90 300 294 9.1 2.5 Add to Quote
L-PCX371 90 200 192.04 13.2 2.9 Add to Quote
L-PCX370 90 120 105.54 22 3 Add to Quote
L-PCX369 88.9 250 242.7 9.8 1.9 Add to Quote
L-PCX368 88.9 150 139.28 15.5 1.4 Add to Quote
L-PCX367 80 1000 1000.67 4.5 3 Add to Quote
L-PCX366 80 150 141.33 14 2.9 Add to Quote
L-PCX365 80 130 119.94 16 2.9 Add to Quote
L-PCX364 80 120 108.98 17.4 2.9 Add to Quote
L-PCX363 80 100 86.13 21.6 2.8 Add to Quote
L-PCX362 77 200 193.96 10.3 2.9 Add to Quote
L-PCX361 77 140 131.36 13.9 2.9 Add to Quote
L-PCX360 76.2 1000 996.06 4.4 3 Add to Quote
L-PCX359 76.2 750 743.43 6 4.1 Add to Quote
L-PCX358 76.2 500 494.37 6 3.2 Add to Quote
L-PCX357 76.2 300 294.89 7.75 3 Add to Quote
L-PCX356 76.2 250 244.09 7.7 1.9 Add to Quote
L-PCX355 76.2 200 193.23 10.27 3 Add to Quote
L-PCX354 76.2 175 167.56 10.4 2 Add to Quote
L-PCX353 76.2 150 141.28 13 3 Add to Quote
L-PCX352 76.2 127 117.58 15 2.9 Add to Quote
L-PCX351 75 750 749.01 5.3 3.5 Add to Quote
L-PCX350 75 500 497.58 6.2 3.5 Add to Quote
L-PCX349 75 350 346.29 7.4 3.5 Add to Quote
L-PCX348 200 380 360.3 30 3 Add to Quote
L-PCX347 75 250 244.9 9 3.5 Add to Quote
L-PCX346 75 200 193.68 10.6 3.6 Add to Quote
L-PCX345 40 50 42.74 11.3 1.9 Add to Quote
L-PCX344 75 185 178.69 10.6 3 Add to Quote
L-PCX343 75 180 174.07 9 1.2 Add to Quote
L-PCX342 75 175 167.56 10.4 2.2 Add to Quote
L-PCX341 75 150 141.86 13.1 3.5 Add to Quote
L-PCX340 75 125 115.2 15.5 3.6 Add to Quote
L-PCX339 75 100 87.35 19.7 3.7 Add to Quote
L-PCX338 66 300 296.83 6.5 3 Add to Quote
L-PCX337 65 100 91.26 13.3 2 Add to Quote
L-PCX336 63.5 175 169.34 7.7 1.9 Add to Quote
L-PCX335 63.5 100 91.23 12.8 1.9 Add to Quote
L-PCX334 63.5 88 77.96 14.8 1.8 Add to Quote
L-PCX333 63.5 75 62.68 18.3 1.7 Add to Quote
L-PCX332 60 700 701.09 2.3 1.1 Add to Quote
L-PCX331 60 150 144.62 9 3 Add to Quote
L-PCX330 60 135 129.27 8.7 2 Add to Quote
L-PCX329 60 120 113.46 10.6 2.9 Add to Quote
L-PCX327 60 90 81.24 13.8 2.9 Add to Quote
L-PCX326 60 75 64.07 17 2.9 Add to Quote
L-PCX325 44.35 75 68.08 12.2 5.5 Add to Quote
L-PCX324 60 70 58 18.6 2.8 Add to Quote
L-PCX323 52 150 145.68 7.4 2.9 Add to Quote
L-PCX322 52 100 93.85 9.9 2.9 Add to Quote
L-PCX321 50.8 1000 996.58 3.62 3 Add to Quote
L-PCX320 50.8 750 747.47 3.83 3 Add to Quote
L-PCX319 50.8 500 496.04 4.25 3 Add to Quote
L-PCX318 50.8 400 395.8 4.56 3 Add to Quote
L-PCX317 50.8 300 296.64 5.09 3 Add to Quote
L-PCX316 50.8 254 251.31 5.5 3 Add to Quote
L-PCX315 50.8 250 246.36 5.52 3 Add to Quote
L-PCX314 50.8 200 195.93 6.17 3 Add to Quote
L-PCX313 50.8 177 173.3 6.6 3 Add to Quote
L-PCX312 50.8 152.4 148.22 7.2 3 Add to Quote
L-PCX311 50.8 150 145.06 7.27 3 Add to Quote
L-PCX310 12.5 50 48.65 2.3 1.5 Add to Quote
L-PCX309 50.8 100 93.62 9.67 3 Add to Quote
L-PCX308 50.8 88.9 82.24 10.6 3 Add to Quote
L-PCX307 50.8 76.2 68.51 12.1 2.9 Add to Quote
L-PCX306 50.8 75 67.23 11.4 1.9 Add to Quote
L-PCX305 6.35 50.2 48.09 3.19 3 Add to Quote
L-PCX304 50.6 127 122.2 8 3 Add to Quote
L-PCX303 50 1000 1001.91 2.6 2 Add to Quote
L-PCX302 101.6 500 492.39 9 3.9 Add to Quote
L-PCX301 50 800 801.06 2.8 2.1 Add to Quote
L-PCX300 150 225 204.85 31.7 4.4 Add to Quote
L-PCX299 50 750 750.33 3.3 2.5 Add to Quote
L-PCX298 50 700 700.7 2.9 2 Add to Quote
L-PCX297 50 500 499.7 3.2 2 Add to Quote
L-PCX296 50 400 398.7 4 2.5 Add to Quote
L-PCX295 50 300 298.03 4.5 2.5 Add to Quote
L-PCX294 50 250 248.04 4.4 2 Add to Quote
L-PCX293 50 200 196.79 6 2.9 Add to Quote
L-PCX292 145 1000 997.69 9 3.9 Add to Quote
L-PCX291 50 175 170.73 5.6 2.1 Add to Quote
L-PCX290 50 160 155.78 6.4 2.6 Add to Quote
L-PCX289 50 150 146.05 6 1.9 Add to Quote
L-PCX288 50 125 120.47 7.5 2.5 Add to Quote
L-PCX287 50 120 115.19 7.3 2.1 Add to Quote
L-PCX286 50 100 94.4 9 2.6 Add to Quote
L-PCX285 50 95 88.96 9.7 2.9 Add to Quote
L-PCX284 50 90 84.48 8.4 1.2 Add to Quote
L-PCX283 50 88 81.32 9.7 2.2 Add to Quote
L-PCX282 50 80 73.44 10.4 2 Add to Quote
L-PCX281 27.2 101.2 100.29 3.7 1.9 Add to Quote
L-PCX280 50 75 67.23 11.4 2.2 Add to Quote
L-PCX279 145 450 441.46 15.5 4 Add to Quote
L-PCX278 145 330 318.04 20 3.9 Add to Quote
L-PCX277 50 63 54.79 12.5 1 Add to Quote
L-PCX276 50 55 44.62 15.8 1.3 Add to Quote
L-PCX275 47.5 92 86.74 8 1.7 Add to Quote
L-PCX274 47 1000 1001.98 2.5 2 Add to Quote
L-PCX273 47 300 298.61 3.8 2 Add to Quote
L-PCX272 47 60 51.92 12.6 1.9 Add to Quote
L-PCX271 46 78.3 73.61 9 2 Add to Quote
L-PCX270 45 500 499.84 3 2 Add to Quote
L-PCX269 42 600 600.46 2.7 2 Add to Quote
L-PCX268 42 250 248.5 3.7 2 Add to Quote
L-PCX267 42 150 147.33 4.9 2 Add to Quote
L-PCX266 42 80 75.19 7.7 2 Add to Quote
L-PCX265 42 60 53.56 10.1 2 Add to Quote
L-PCX264 41 60 54.41 8.5 0.9 Add to Quote
L-PCX263 40 200 198.18 3.9 2 Add to Quote
L-PCX262 40 100 96.42 6 2 Add to Quote
L-PCX261 6 24 23.01 1.5 1.1 Add to Quote
L-PCX260 25 1000 1002.24 2.1 2 Add to Quote
L-PCX259 40 76 71.79 6.4 1 Add to Quote
L-PCX258 40 70 65.05 7.9 1.9 Add to Quote
L-PCX257 40 63 57.94 7.7 0.9 Add to Quote
L-PCX256 140 250 234.92 24.3 3.8 Add to Quote
L-PCX255 39.5 333 328.13 3 1.9 Add to Quote
L-PCX254 38.1 500 495.82 3.8 3.1 Add to Quote
L-PCX253 38.1 400 396.25 3.88 3 Add to Quote
L-PCX252 38.1 250 247.09 4.41 3 Add to Quote
L-PCX251 38.1 223 220.66 5 3.7 Add to Quote
L-PCX250 38.1 200 196.85 4.77 3 Add to Quote
L-PCX249 38.1 175 171.36 5.02 3 Add to Quote
L-PCX248 38.1 150 146.31 5.37 3 Add to Quote
L-PCX247 38.1 125 121.13 5.87 3 Add to Quote
L-PCX246 38.1 100 95.63 6.63 3 Add to Quote
L-PCX245 38.1 88.3 83.85 7.16 3 Add to Quote
L-PCX244 38.1 75.6 70.36 7.95 3 Add to Quote
L-PCX243 25.4 88.3 85.4 4.8 3 Add to Quote
L-PCX242 38.1 63.5 58.46 8 1.9 Add to Quote
L-PCX241 25.4 50.2 46.03 6.32 3 Add to Quote
L-PCX240 18 60 57.1 4.7 3.4 Add to Quote
L-PCX239 25.4 25.4 16.97 12.8 3 Add to Quote
L-PCX238 38.1 50.8 44.4 10 1.9 Add to Quote
L-PCX237 20 40 36.77 4.9 2.3 Add to Quote
L-PCX236 38 750 750.85 2.5 2 Add to Quote
L-PCX235 38 500 499.89 2.7 2 Add to Quote
L-PCX234 38 250 248.59 3.4 2 Add to Quote
L-PCX233 38 200 198.16 3.8 2 Add to Quote
L-PCX232 38 150 147.6 4.4 2 Add to Quote
L-PCX231 15 85 83.02 3 2.4 Add to Quote
L-PCX230 38 125 122.19 4.9 2.1 Add to Quote
L-PCX229 38 100 96.64 5.6 2 Add to Quote
L-PCX228 38 75 70.64 7 2 Add to Quote
L-PCX227 38 50 43.38 10.3 2 Add to Quote
L-PCX226 12.7 38.1 36.26 3 2 Add to Quote
L-PCX225 35 85 81.63 5.6 2 Add to Quote
L-PCX224 31.5 40 33.89 9.3 2.2 Add to Quote
L-PCX223 30 1000 1002.27 2.2 2 Add to Quote
L-PCX222 30 800 801.38 2.3 2 Add to Quote
L-PCX221 30 500 500.23 2.4 2 Add to Quote
L-PCX220 30 200 198.7 3.1 2 Add to Quote
L-PCX219 30 150 148.25 3.5 2 Add to Quote
L-PCX218 140 230 212.9 26 3.5 Add to Quote
L-PCX217 30 125 123.02 3.7 1.9 Add to Quote
L-PCX216 30 120 117.94 3.8 2 Add to Quote
L-PCX214 30 110 107.77 4 2 Add to Quote
L-PCX213 30 100 97.6 4.2 2 Add to Quote
L-PCX212 30 89 85.9 4.7 2.2 Add to Quote
L-PCX211 30 80 77.13 4.8 2 Add to Quote
L-PCX210 30 75 72.5 3.8 0.8 Add to Quote
L-PCX209 30 70 66.83 5.2 2 Add to Quote
L-PCX208 30 63 59.71 5 1.4 Add to Quote
L-PCX207 30 60 56.4 5.8 2 Add to Quote
L-PCX206 30 50 45.7 6.8 2 Add to Quote
L-PCX205 6.35 38.1 35.96 3.25 3 Add to Quote
L-PCX204 30 40 34.61 8.4 2 Add to Quote
L-PCX203 30 35 28.6 9.9 2 Add to Quote
L-PCX202 29 50 45.97 6.4 2 Add to Quote
L-PCX201 28.5 500 504.89 1.7 1.3 Add to Quote
L-PCX200 145 250 233.86 25.9 3.7 Add to Quote
L-PCX199 27 50 46.36 5.8 2 Add to Quote
L-PCX198 26.9 342.5 339.51 4.5 4 Add to Quote
L-PCX197 25.4 1000 996.89 3.15 3 Add to Quote
L-PCX196 25.4 750 747.89 3.2 3 Add to Quote
L-PCX195 25.4 500 496.66 3.31 3 Add to Quote
L-PCX194 25.4 400 396.57 3.39 3 Add to Quote
L-PCX193 25.4 300 297.68 3.52 3 Add to Quote
L-PCX192 25.4 200 197.51 3.78 3 Add to Quote
L-PCX191 25.4 152.4 150.99 3 2 Add to Quote
L-PCX190 25.4 150 147.19 4.04 3 Add to Quote
L-PCX189 25 127 124.48 3.2 2 Add to Quote
L-PCX188 25.4 100 96.98 4.58 3 Add to Quote
L-PCX187 25.4 75.6 72.23 5.12 3 Add to Quote
L-PCX184 25 75 72.88 3.6 1.5 Add to Quote
L-PCX183 25.4 38.1 33.06 7.64 3 Add to Quote
L-PCX182 17 34 31.36 4.2 2 Add to Quote
L-PCX181 25 50.8 47.21 5.2 2 Add to Quote
L-PCX180 114 170 153.83 24.6 3.9 Add to Quote
L-PCX179 25 40 36.24 5.7 1.5 Add to Quote
L-PCX178 25 38 34.18 5.6 1.1 Add to Quote
L-PCX177 25 31.7 26.39 7.9 2.1 Add to Quote
L-PCX176 25 30 24.96 7.8 1.5 Add to Quote
L-PCX175 24 32 27.4 7 1.9 Add to Quote
L-PCX174 23.5 31.9 27.83 6.2 1.4 Add to Quote
L-PCX173 25 200 199.15 2.3 1.5 Add to Quote
L-PCX172 22.9 31.7 26.6 7.9 3.3 Add to Quote
L-PCX171 22.4 150 148.71 2.8 2 Add to Quote
L-PCX170 22.4 80 77.99 3.5 2 Add to Quote
L-PCX169 22.4 60 57.52 4.1 2 Add to Quote
L-PCX168 22.3 57.5 55.6 3.4 2 Add to Quote
L-PCX167 22 34 30.3 5.8 2 Add to Quote
L-PCX166 21.2 35.5 32.29 4.7 1.3 Add to Quote
L-PCX165 21 37.8 35.81 4 1 Add to Quote
L-PCX164 20 50 47.55 4 2 Add to Quote
L-PCX163 20 46.5 44.4 3.2 1.1 Add to Quote
L-PCX162 20 38 35.44 3.9 1.2 Add to Quote
L-PCX161 20 35 32.36 4.2 1.2 Add to Quote
L-PCX160 20 33 29.91 4.7 1.5 Add to Quote
L-PCX159 19 38 34.18 5.6 3.1 Add to Quote
L-PCX158 18 350 350.05 1.7 1.5 Add to Quote
L-PCX157 18 250 249.65 1.8 1.5 Add to Quote
L-PCX156 18 200 199.42 1.9 1.5 Add to Quote
L-PCX155 18 196.2 193.96 4 3.7 Add to Quote
L-PCX154 18 150 149.18 2 1.5 Add to Quote
L-PCX153 18 125 124.03 2.1 1.5 Add to Quote
L-PCX152 18 100 98.82 2.3 1.5 Add to Quote
L-PCX151 18 75 73.54 2.6 1.5 Add to Quote
L-PCX150 18 50 48.12 3.1 1.5 Add to Quote
L-PCX149 18 35 32.55 3.9 1.5 Add to Quote
L-PCX148 18 24 20.72 5.1 1.3 Add to Quote
L-PCX147 17.8 31 28.5 3.8 1.1 Add to Quote
L-PCX146 17.1 72.7 71.08 2.6 1.6 Add to Quote
L-PCX145 38.1 50.2 42.72 11.33 3 Add to Quote
L-PCX144 16 37.8 36.54 2.9 1.2 Add to Quote
L-PCX143 15.5 49.8 48.02 3 1.8 Add to Quote
L-PCX142 15 986.7 988.89 2.1 2.1 Add to Quote
L-PCX141 15 196 195.21 2.3 2 Add to Quote
L-PCX140 15 125 124.07 1.4 1 Add to Quote
L-PCX139 25 300 299.68 2 1.5 Add to Quote
L-PCX138 15 40 38.02 3 1.6 Add to Quote
L-PCX137 18 40 36.9 4.9 2.9 Add to Quote
L-PCX136 15 36 33.76 3.6 2 Add to Quote
L-PCX135 15 30 27.94 3.18 1.3 Add to Quote
L-PCX134 15 22.5 20.47 3.35 1.4 Add to Quote
L-PCX133 15 20.9 17.93 5 2 Add to Quote
L-PCX132 15 15 11.71 5.5 2.2 Add to Quote
L-PCX131 14.2 52.2 51.26 1.8 0.9 Add to Quote
L-PCX130 14.2 25 22.29 4 1.9 Add to Quote
L-PCX129 14 25 22.46 4 2 Add to Quote
L-PCX128 13.5 33 31.77 2 0.6 Add to Quote
L-PCX127 15 21 17.78 5 2 Add to Quote
L-PCX126 12.7 25.4 22.35 4.63 3 Add to Quote
L-PCX125 13.5 26 23.59 3.8 2 Add to Quote
L-PCX124 13 43 41.18 3 2 Add to Quote
L-PCX123 12.7 120.2 117.96 4 3.8 Add to Quote
L-PCX122 12.7 105.4 104.17 4 3.8 Add to Quote
L-PCX121 12.7 100 97.77 3.39 3 Add to Quote
L-PCX120 12.7 88.5 86.3 3.44 3 Add to Quote
L-PCX119 12.7 62.9 60.52 3.62 3 Add to Quote
L-PCX118 12.7 60 58.22 4 3.6 Add to Quote
L-PCX117 12.7 52.9 51.13 4 3.5 Add to Quote
L-PCX116 12.7 44.5 43.08 2.4 1.5 Add to Quote
L-PCX115 105 150 134.6 24.2 3.8 Add to Quote
L-PCX114 12.7 35.3 33.34 4 3.3 Add to Quote
L-PCX113 12.7 28.6 26.46 3.4 2 Add to Quote
L-PCX112 12.7 19 15.49 5.33 3 Add to Quote
L-PCX111 12.7 16 13.31 4 1 Add to Quote
L-PCX110 12.5 250 249.71 1.7 1.6 Add to Quote
L-PCX109 12.5 200 199.55 1.7 1.5 Add to Quote
L-PCX108 12.5 150 149.31 1.8 1.6 Add to Quote
L-PCX107 12.5 75 73.93 2 1.5 Add to Quote
L-PCX106 12.5 100 99.08 1.9 1.5 Add to Quote
L-PCX105 6.35 19 16.68 3.52 3 Add to Quote
L-PCX104 22.9 50.8 47.21 5.2 2.6 Add to Quote
L-PCX103 12.5 60 58.82 2.1 1.5 Add to Quote
L-PCX102 25 175 173.1 2 1.1 Add to Quote
L-PCX101 12.5 40 38.49 2.5 1.5 Add to Quote
L-PCX100 12.5 38 36.29 2.6 1.6 Add to Quote
L-PCX099 12.5 35 33.4 2.6 1.5 Add to Quote
L-PCX098 12.5 30 28.25 2.8 1.5 Add to Quote
L-PCX097 12.5 25 23.04 3.1 1.5 Add to Quote
L-PCX096 12.5 24 21.9 3.2 1.5 Add to Quote
L-PCX095 12.5 23.9 22.17 3.2 1.5 Add to Quote
L-PCX094 12.5 20 17.69 3.6 1.5 Add to Quote
L-PCX093 12.5 15 11.95 4.7 1.6 Add to Quote
L-PCX092 12.4 14.5 11.4 4.8 1.6 Add to Quote
L-PCX091 12 200.7 198.46 4 3.9 Add to Quote
L-PCX090 12 175.5 173.26 4 3.9 Add to Quote
L-PCX089 12 84 82.39 2.5 2.1 Add to Quote
L-PCX088 12 72 70.42 2.4 1.9 Add to Quote
L-PCX087 12 60 58.38 2.5 1.9 Add to Quote
L-PCX086 12 48 46.38 2.5 1.8 Add to Quote
L-PCX085 12 42 40.23 2.7 1.9 Add to Quote
L-PCX084 12 36 34.46 3 2 Add to Quote
L-PCX083 12 31 29.29 2.6 1.5 Add to Quote
L-PCX082 12 30 28.02 3 1.8 Add to Quote
L-PCX081 12 24 22.19 2.8 1.3 Add to Quote
L-PCX080 12 18 15.63 3.6 1.4 Add to Quote
L-PCX079 12 12 9.76 4 1.8 Add to Quote
L-PCX078 11 47 45.46 2.6 2 Add to Quote
L-PCX077 11 30 28.82 1.8 0.8 Add to Quote
L-PCX076 11 15.1 12.73 3.7 1.5 Add to Quote
L-PCX075 10.9 31.6 30.98 1.7 0.8 Add to Quote
L-PCX073 10 31 29.75 1.9 1.1 Add to Quote
L-PCX072 10 22 20.04 3.1 2 Add to Quote
L-PCX071 10 20 17.9 3.3 2 Add to Quote
L-PCX070 10 160.6 159.21 2.1 2 Add to Quote
L-PCX069 9.5 25.4 23.49 2.9 2 Add to Quote
L-PCX068 9 36 34.49 2.3 1.8 Add to Quote
L-PCX067 9 27 25.35 2.5 1.8 Add to Quote
L-PCX066 9 22 20.17 2.9 2 Add to Quote
L-PCX065 9 18 16.45 2.41 1.3 Add to Quote
L-PCX064 9 13.5 11.96 2.6 1.4 Add to Quote
L-PCX063 9 9 7.32 3 1.4 Add to Quote
L-PCX062 8.5 17 15.49 2.3 1.2 Add to Quote
L-PCX061 8 50 48.82 2.7 2.4 Add to Quote
L-PCX060 8 38 36.03 3 2.6 Add to Quote
L-PCX059 8 17 15.49 2.3 1.4 Add to Quote
L-PCX058 7.6 9.7 8.19 2.3 0.6 Add to Quote
L-PCX057 7.5 12.5 11.05 2.2 1 Add to Quote
L-PCX056 7.1 8 6.01 3.3 1.4 Add to Quote
L-PCX055 76.2 100 87.01 19.7 2.9 Add to Quote
L-PCX054 7 31 29.82 1.8 1.4 Add to Quote
L-PCX053 6.9 15.2 13.89 2 1.2 Add to Quote
L-PCX052 6.6 100 98.02 3 2.9 Add to Quote
L-PCX051 65 600 597.71 6.5 4.8 Add to Quote
L-PCX050 6.6 50 48.62 2.1 1.9 Add to Quote
L-PCX049 60 100 92.13 12.5 2.9 Add to Quote
L-PCX048 6.5 19.9 18.57 2.5 2 Add to Quote
L-PCX047 6.4 4.7 3 3 1.2 Add to Quote
L-PCX046 6.35 100 97.96 3.09 3 Add to Quote
L-PCX045 30 250 249.02 2.9 2 Add to Quote
L-PCX044 29 160 158.42 3.3 2 Add to Quote
L-PCX043 25.4 76.2 73.78 4.1 2 Add to Quote
L-PCX042 25.4 63.5 60.77 4.5 2 Add to Quote
L-PCX041 25.4 37 31.59 8.4 3.6 Add to Quote
L-PCX040 25.4 31.7 26.61 7.9 1.9 Add to Quote
L-PCX039 22.4 100 98.26 3.2 2 Add to Quote
L-PCX038 22.4 40 36.66 5.3 2 Add to Quote
L-PCX037 18.5 30 26.82 5 1.9 Add to Quote
L-PCX036 17.3 65 63.53 2.5 1.4 Add to Quote
L-PCX035 6.35 88.3 86.52 3.11 3 Add to Quote
L-PCX034 15.8 32.7 30.25 3.9 2 Add to Quote
L-PCX033 6.35 75.6 73.54 3.12 3 Add to Quote
L-PCX032 15 100 98.72 2.5 2 Add to Quote
L-PCX031 12 80 78.52 2.7 2 Add to Quote
L-PCX030 6.35 25.4 23.17 3.39 3 Add to Quote
L-PCX029 6.35 12.7 10.18 3.81 3 Add to Quote
L-PCX028 15 50 48.14 3.1 2 Add to Quote
L-PCX027 15 18 14.31 5.7 1.9 Add to Quote
L-PCX026 12.5 63.5 62.05 2.2 1.6 Add to Quote
L-PCX025 12 25 22.79 3.5 2 Add to Quote
L-PCX024 6.35 6.4 2.86 5.38 3 Add to Quote
L-PCX023 6.3 31.7 30.65 1.6 1.3 Add to Quote
L-PCX022 12 20 17.5 3.9 2 Add to Quote
L-PCX021 6.3 25.4 23.91 2.4 2 Add to Quote
L-PCX020 6.3 12.7 10.84 2.8 2 Add to Quote
L-PCX019 6.2 50 49.14 1.3 1.1 Add to Quote
L-PCX018 6.2 38 36.82 1.8 1.6 Add to Quote
L-PCX017 10 40 38.44 2.6 2 Add to Quote
L-PCX016 10 15 12.55 3.8 2 Add to Quote
L-PCX015 6.2 33 32.08 1.4 1.1 Add to Quote
L-PCX014 6.2 25.4 24.54 1.3 0.9 Add to Quote
L-PCX013 8 18 16.16 2.9 2 Add to Quote
L-PCX012 6 72 70.97 1.6 1.5 Add to Quote
L-PCX011 6 48 46.95 1.6 1.4 Add to Quote
L-PCX010 8 15 13.01 3.1 2 Add to Quote
L-PCX009 6 36 34.96 1.6 1.4 Add to Quote
L-PCX008 6 30 29.14 1.3 1 Add to Quote
L-PCX007 8 10 7.47 3.9 2 Add to Quote
L-PCX006 7.5 13 11.73 2 0.9 Add to Quote
L-PCX005 6 17 15.41 2.5 2 Add to Quote
L-PCX004 6 21 20.06 1.42 1 Add to Quote
L-PCX003 6 18 17.07 1.4 0.9 Add to Quote
L-PCX002 6 15 13.68 2 1.4 Add to Quote
L-PCX001 6 12 10.94 1.6 0.8 Add to Quote
