True Zero Order Waveplates – Single Plate

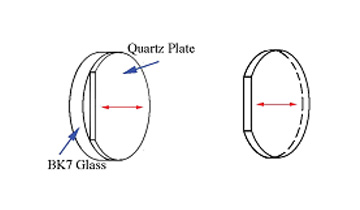

Made of a single quartz plate that is very thin, true zero order waveplates are provided either by themselves as a single plate for high damage threshold applications (greater than 1 GW/cm2), or as a cemented plate on a BK7 substrate to provide strength.

Don't see what you need? Request custom optics.





true-zeroorder-wave-plate
  to
Part Number Diameter Wave Thickness Type
W-QPS220 20 1/4 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-QPS215 15 1/4 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-QPS212 12.7 1/4 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-QPS210 10 1/4 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-HPS220 20 1/2 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-HPS215 15 1/2 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-HPS212 12.7 1/2 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-HPS210 10 1/2 wave 0.04∼0.09 Microns Single Plate Add to Quote
W-QPF230 30 1/4 wave approx 1.0mm Cemented Add to Quote
W-QPF225 25.4 1/4 wave approx 1.0mm Cemented Add to Quote
W-QPF220 20 1/4 wave approx 1.0mm Cemented Add to Quote
W-QPF215 15 1/4 wave approx 1.0mm Cemented Add to Quote
W-QPF212 12.7 1/4 wave approx 1.0mm Cemented Add to Quote
W-QPF210 10 1/4 wave approx 1.0mm Cemented Add to Quote
W-HPF230 30 1/2 wave approx 1.0mm Cemented Add to Quote
W-HPF225 25.4 1/2 wave approx 1.0mm Cemented Add to Quote
W-HPF220 20 1/2 wave approx 1.0mm Cemented Add to Quote
W-HPF215 15 1/2 wave approx 1.0mm Cemented Add to Quote
W-HPF212 12.7 1/2 wave approx 1.0mm Cemented Add to Quote
W-HPF210 10 1/2 wave approx 1.0mm Cemented Add to Quote
