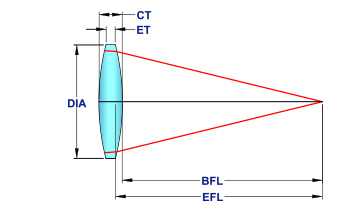

Similar to standard Bi-Convex Lenses but smaller in diameter, these micro Bi-Convex Lenses are ideal for low conjugate ratios systems. Used for converging light beams.
Below are our standard specifications.
Don't see what you need? Request custom optics.
| Diameter | Dia. Tolerance | CT Tolerance | Centering | Irregularity | Surface Quality | Bevel |
|---|---|---|---|---|---|---|
| 3.00-6.00 | +0.00 / -0.10 | ±0.1 | < 5 minutes | 0.5 Waves | 40-20 | 0.25 x 45° |
| Dimensions | MM | |||||
| Clear Aperture | CA >= 90% of Diameter | |||||
| Coating | Uncoated, Specify your coating (See Coating Chart for Available Options) | |||||
| Design Wavelength | 587.6nm | |||||
| Focal Length Tolerance | ±2% | |||||
| Edge Thickness | Reference | |||||
| * All dimensions are in mm | ||||||
| Part Number | Diameter | Effective Focal Length | Back Focal Length | Center Thickness | Edge Thickness | |
|---|---|---|---|---|---|---|
| L-MBX013 | 5.5 | 9 | 8.4000 | 1.8 | 1.0000 | Add to Quote |
| L-MBX011 | 5.5 | 4.2 | 3.1000 | 2.9 | 0.4000 | Add to Quote |
| L-MBX009 | 5.0 | 10 | 9.2000 | 2.6 | 2.0000 | Add to Quote |
| L-MBX008 | 5.0 | 7 | 6.0000 | 3 | 2.0000 | Add to Quote |
| L-MBX007 | 5.0 | 5.6 | 4.9000 | 1.9 | 0.7000 | Add to Quote |
| L-MBX006 | 5.0 | 4.5 | 3.8000 | 2 | 0.4000 | Add to Quote |
| L-MBX005 | 4.5 | 9 | 8.2000 | 2.38 | 1.8000 | Add to Quote |
| L-MBX004 | 4.5 | 4.5 | 3.7000 | 2.6 | 1.8000 | Add to Quote |
| L-MBX003 | 3.0 | 9 | 8.5000 | 1.6 | 1.3500 | Add to Quote |
| L-MBX002 | 3.0 | 6 | 5.4000 | 1.8 | 1.4100 | Add to Quote |
| L-MBX001 | 3.0 | 4.5 | 3.8000 | 2 | 1.4700 | Add to Quote |
| L-MBX000 | 3.0 | 3 | -1.2800 | 2.2000 | 1.6400 | Add to Quote |
