Similar to Standard Achromats but smaller in diameter, these Micro Achromats provide good spherical and chromatic correction, enabling them to be used in laser applications.
Below are our standard specifications.
Don't see what you need? Request custom optics.
Diameter | Dia. Tolerance | CT Tolerance | Centering | Irregularity | Surface Quality | Bevel |
3.00-6.00 | +0.00 / -0.10 | ±0.2 | < 10 minutes | 0.25 Waves | 40-20 | 0.25 x 45° |
Dimensions | MM | |||||
Clear Aperture | CA >= 90% of Diameter | |||||
Coating | 1/4wave MgF2 @ 550nm (See Coating Chart for Available Options) | |||||
Design Wavelength | 587.6nm | |||||
Focal Length Tolerance | ±2% | |||||
Edge Thickness | Reference | |||||
* All dimensions are in mm |

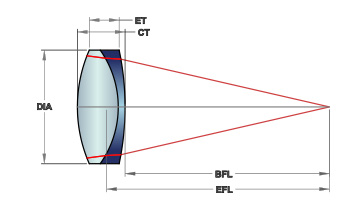

Part Number | Diameter | EFL | BFL | CT | ET | |
---|---|---|---|---|---|---|
L-MAC010 | 3.0 | 9 | 7.8000 | 2.5 | 2.1900 | Add to Quote |
L-MAC009 | 5.8 | 18.9 | 17.4000 | 3.4 | 2.8500 | Add to Quote |
L-MAC008 | 5.7 | 26.9 | 25.8000 | 2.4 | 2.0000 | Add to Quote |
L-MAC007 | 5.5 | 8 | 6.1000 | 3.9 | 2.7100 | Add to Quote |
L-MAC006 | 5.2 | 13 | 11.6000 | 3.1 | 2.5000 | Add to Quote |
L-MAC005 | 5.0 | 15 | 13.6000 | 2.58 | 2.2200 | Add to Quote |
L-MAC004 | 5.0 | 10 | 8.6000 | 2.76 | 2.2200 | Add to Quote |
L-MAC003 | 5.0 | 8.5 | 7.4000 | 1.9 | 1.2200 | Add to Quote |
L-MAC002 | 4.9 | 10.6 | 7.8000 | 3.8 | 3.2700 | Add to Quote |
L-MAC001 | 4.0 | 8 | 6.7000 | 2.53 | 2.0900 | Add to Quote |
L-MAC000 | 3.0 | 6 | 4.3000 | 3 | 2.6700 | Add to Quote |
