Micro Optics

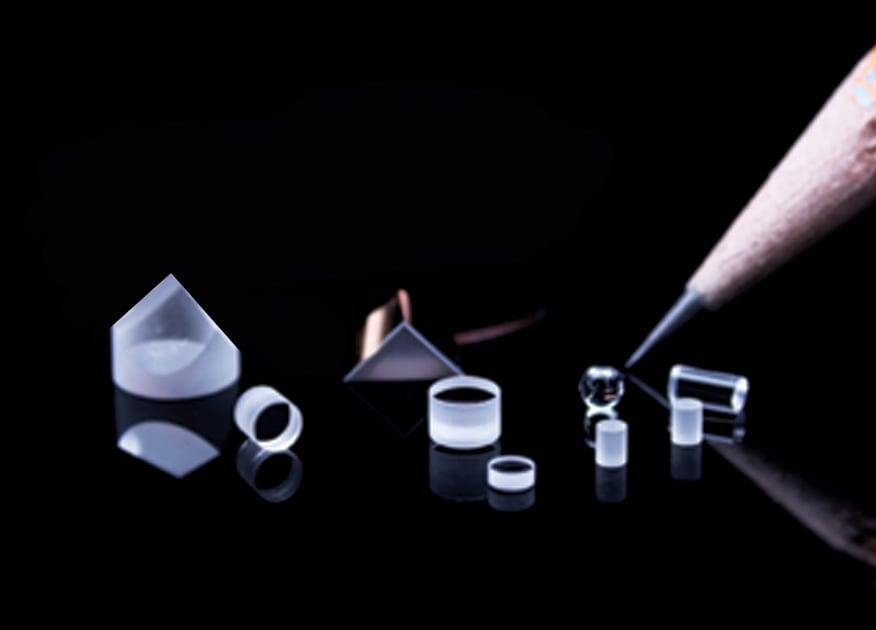

Ross Optical provides micro lenses with diameters from sub-millimeter to 6.0 mm.  We work with each customer to provide the micro optics lenses and other components that meet their requirements for size, cost, and performance.

Micro optics from Ross Optical are at the heart of a number of micro-optical systems, including devices for optical fiber transmission, medical devices, instrumentation and sensing systems, and a host of visualization devices. Micro-optical lenses allow shorter focal lengths for compact systems.

Micro Optics Datasheet

Simple
  to
  to
Part Number Diameter Effective Focal Length Back Focal Length Center Thickness Edge Thickness
L-MBX013 5.5 9 8.4 1.8 1 Add to Quote
L-MBX011 5.5 4.2 3.1 2.9 0.4 Add to Quote
L-MBX009 5 10 9.2 2.6 2 Add to Quote
L-MBX008 5 7 6 3 2 Add to Quote
L-MBX007 5 5.6 4.9 1.9 0.7 Add to Quote
L-MBX006 5 4.5 3.8 2 0.4 Add to Quote
L-MBX005 4.5 9 8.2 2.38 1.8 Add to Quote
L-MBX004 4.5 4.5 3.7 2.6 1.8 Add to Quote
L-MBX003 3 9 8.5 1.6 1.35 Add to Quote
L-MBX002 3 6 5.4 1.8 1.41 Add to Quote
L-MBX001 3 4.5 3.8 2 1.47 Add to Quote
L-MBX000 3 3 2.2 2.3 1.64 Add to Quote
L-MPC100 3 -3 -3.3 0.5 1.2 Add to Quote
L-MPC070 4 -55 -55.5 1.5 1.6 Add to Quote
L-MPC065 4 -45.5 -46.2 1.5 1.6 Add to Quote
L-MPC060 4 -29 -29.9 1.5 1.6 Add to Quote
L-MPC055 4 -22 -22.9 1.5 1.7 Add to Quote
L-MPC050 4 -18 -18.8 1.5 1.7 Add to Quote
L-MPC025 4 -8 -8.45 0.8 1.1 Add to Quote
L-MPC020 3 -6 -6.45 0.8 1.1 Add to Quote
L-MPC015 2 -4 -4.45 0.8 1 Add to Quote
L-MPC010 2 -2 -2.45 0.8 1.2 Add to Quote
L-MPC005 1 -1 -1.28 0.5 0.7 Add to Quote
L-MPX021 5 5 2.38 4 2.1 Add to Quote
L-MPX020 5.1 68 66.68 2 1.9 Add to Quote
L-MPX019 5 10 8.32 2.6 2 Add to Quote
L-MPX018 5 4.8 3.15 2.5 0 Add to Quote
L-MPX017 4.5 9.7 8.94 1.3 0.8 Add to Quote
L-MPX016 4.5 9 7.43 2.38 1.8 Add to Quote
L-MPX015 4.5 4.5 3.06 2.59 1.8 Add to Quote
L-MPX014 4.3 8.1 7.05 1.6 1 Add to Quote
L-MPX013 4 22.8 20.94 2.9 2.7 Add to Quote
L-MPX012 4 8 6.38 2.5 2 Add to Quote
L-MPX011 4 6 5.01 1.5 0.8 Add to Quote
L-MPX010 4 4 3.05 1.7 1 Add to Quote
L-MPX009 3.8 6 4.88 1.7 1.1 Add to Quote
L-MPX008 3.6 3.5 2.23 2 0.9 Add to Quote
L-MPX007 3 9 8.01 1.5 1.3 Add to Quote
L-MPX006 3 8 6.68 2 1.7 Add to Quote
L-MPX005 3 6 4.81 1.8 1.4 Add to Quote
L-MPX004 3 4.5 3.49 1.8 1.5 Add to Quote
L-MPX003 3 3 1.87 2 1.5 Add to Quote
L-MPX002 2.8 2.5 1.5 1.5 0.4 Add to Quote
L-MPX001 2.5 3 1.69 2 1.4 Add to Quote
L-MPX000 2.5 1.6 1.11 0.9 0.11 Add to Quote
L-MAC010 3 9 7.8 2.5 2.19 Add to Quote
L-MAC009 5.8 18.9 17.4 3.4 2.85 Add to Quote
L-MAC008 5.7 26.9 25.8 2.4 2 Add to Quote
L-MAC007 5.5 8 6.1 3.9 2.71 Add to Quote
L-MAC006 5.2 13 11.6 3.1 2.5 Add to Quote
L-MAC005 5 15 13.6 2.58 2.22 Add to Quote
L-MAC004 5 10 8.6 2.76 2.22 Add to Quote
L-MAC003 5 8.5 7.4 1.9 1.22 Add to Quote
L-MAC002 4.9 10.6 7.8 3.8 3.27 Add to Quote
L-MAC001 4 8 6.7 2.53 2.09 Add to Quote
L-MAC000 3 6 4.3 3 2.67 Add to Quote
