Similar to standard Plano-Convex lenses but smaller in diameter, these Micro Plano-Convex lenses are ideal for lightweight and compact instruments.
Below are our standard specifications.
Don't see what you need? Request custom optics.
Diameter | Dia. Tolerance | CT Tolerance | Centering | Irregularity | Surface Quality | Bevel |
2.50-6.00 | +0.00 / -0.10 | ±0.1 | < 5 minutes | 0.5 Waves | 40-20 | 0.25 x 45° |
Dimensions | MM | |||||
Clear Aperture | CA >= 90% of Diameter | |||||
Coating | Uncoated, Specify your coating (See Coating Chart for Available Options) | |||||
Design Wavelength | 587.6nm | |||||
Focal Length Tolerance | ±2% | |||||
Edge Thickness | Reference | |||||
* All dimensions are in mm |

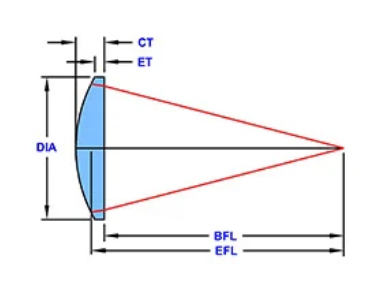

Part Number | Diameter | EFL | BFL | CT | ET | |
---|---|---|---|---|---|---|
L-PCX915 | 9.0 | 15 | 13 | 3.00 | 1.60 | Add to Quote |
L-MPX021 | 5.0 | 5 | 2.38 | 4 | 2.1 | Add to Quote |
L-MPX020 | 5.1 | 68 | 66.68 | 2 | 1.9 | Add to Quote |
L-MPX019 | 5.0 | 10 | 8.32 | 2.6 | 2 | Add to Quote |
L-MPX018 | 5.0 | 4.8 | 3.15 | 2.5 | 0 | Add to Quote |
L-MPX017 | 4.5 | 9.7 | 8.94 | 1.3 | 0.8 | Add to Quote |
L-MPX016 | 4.5 | 9 | 7.43 | 2.38 | 1.8 | Add to Quote |
L-MPX015 | 4.5 | 4.5 | 3.06 | 2.59 | 1.8 | Add to Quote |
L-MPX014 | 4.3 | 8.1 | 7.05 | 1.6 | 1 | Add to Quote |
L-MPX013 | 4.0 | 22.8 | 20.94 | 2.9 | 2.7 | Add to Quote |
L-MPX012 | 4.0 | 8 | 6.38 | 2.5 | 2 | Add to Quote |
L-MPX011 | 4.0 | 6 | 5.01 | 1.5 | 0.8 | Add to Quote |
L-MPX010 | 4.0 | 4 | 3.05 | 1.7 | 1 | Add to Quote |
L-MPX009 | 3.8 | 6 | 4.88 | 1.7 | 1.1 | Add to Quote |
L-MPX008 | 3.6 | 3.5 | 2.23 | 2 | 0.9 | Add to Quote |
L-MPX007 | 3.0 | 9 | 8.01 | 1.5 | 1.3 | Add to Quote |
L-MPX006 | 3.0 | 8 | 6.68 | 2 | 1.7 | Add to Quote |
L-MPX005 | 3.0 | 6 | 4.81 | 1.8 | 1.4 | Add to Quote |
L-MPX004 | 3.0 | 4.5 | 3.49 | 1.8 | 1.5 | Add to Quote |
L-MPX003 | 3.0 | 3 | 1.87 | 2 | 1.5 | Add to Quote |
L-MPX002 | 2.8 | 2.5 | 1.5 | 1.5 | 0.4 | Add to Quote |
L-MPX001 | 2.5 | 3 | 1.69 | 2 | 1.4 | Add to Quote |
L-MPX000 | 2.5 | 1.6 | 1.11 | 0.9 | 0.1 | Add to Quote |
